SKU
TVLogic - LUM-242H
Features :
- 24" True UHD Resolution (3840×2160)
- Peak Luminance of 1,000 nits
- 1.07 Billion Colors (10-bit)
- 90% Coverage of DCI-P3 Color Gamut
- HDR Emulation (PQ, HLG)
- 12G-SDI Single Link 4K/UHD
- 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
- Waveform and Vectorscope
- 16-channel Audio Level Meter
- Focus Assist and Marker
- Timecode Display
- UMD Display
- Blue/Mono Only
- Various Aspect Ratios
- Luma (Y') Zone Check
- Closed Caption (CC-608, CC-708)
- H/V Delay
- Tally

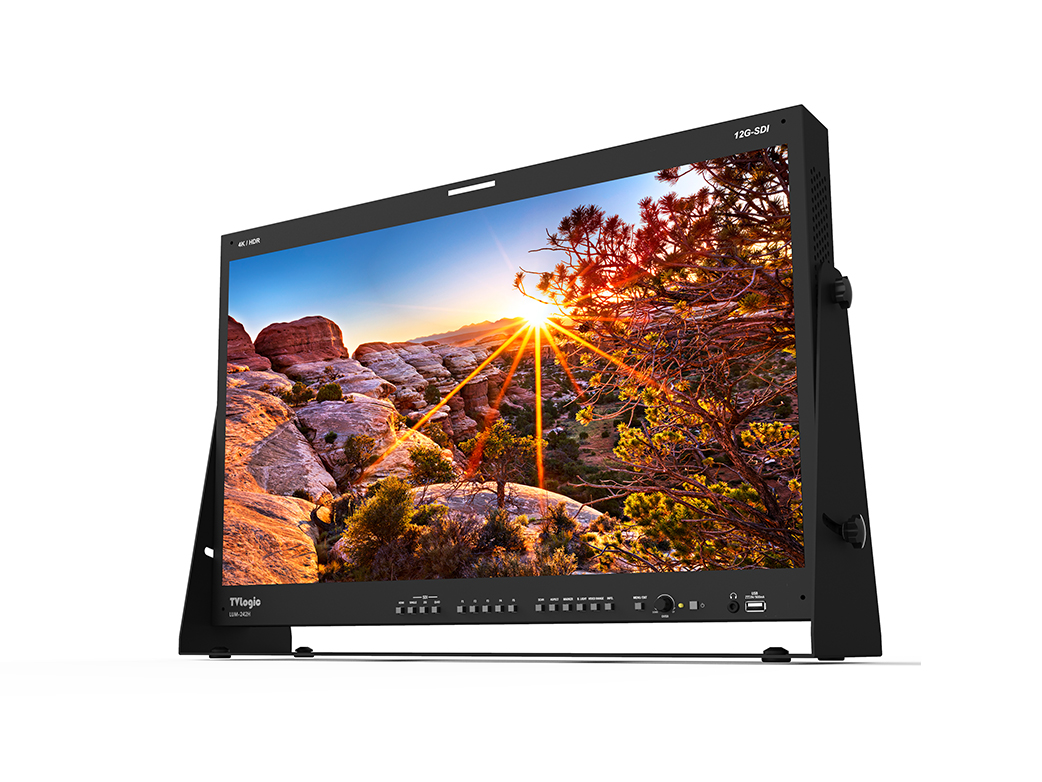

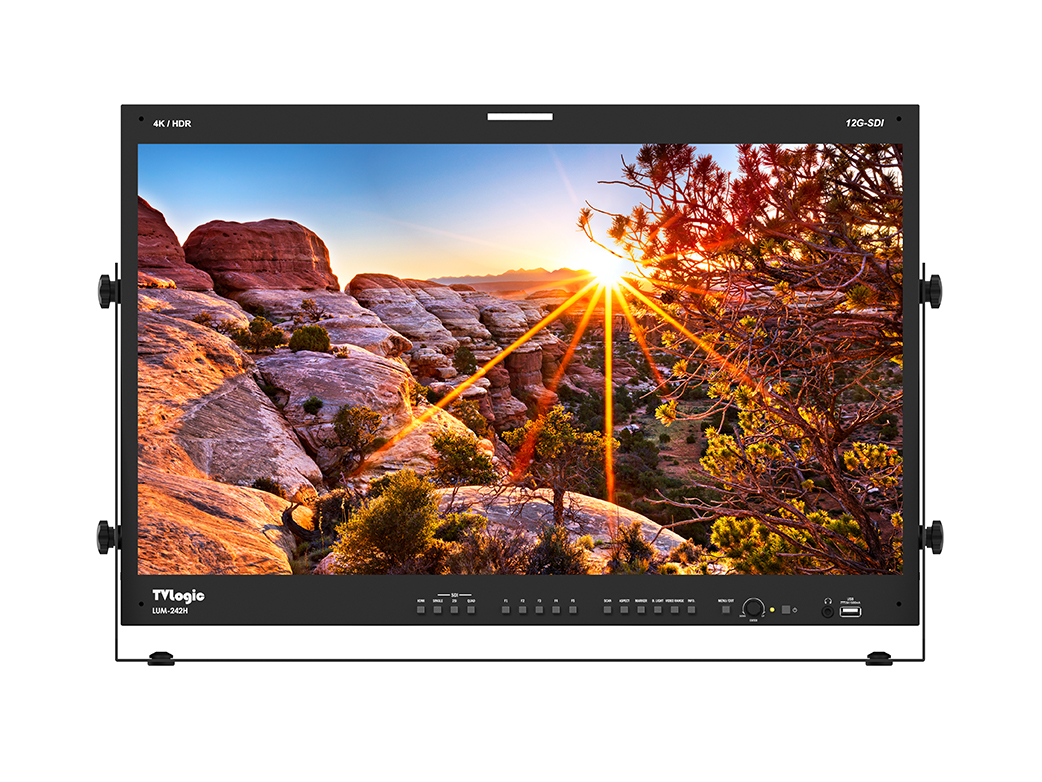

LUM-242H : 24’’ 4K/UHD High Brightness HDR Emulation Monitor

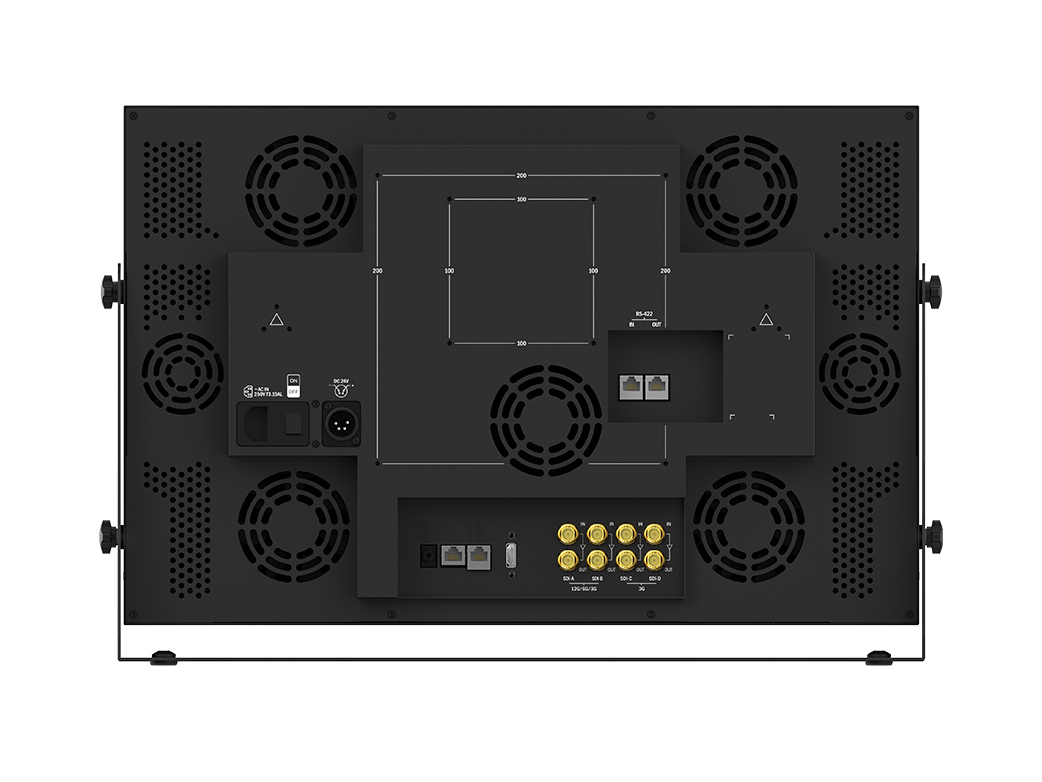

The LUM-242H is a 24 inch monitor with UHD resolution (3840 x 2160), high luminance up to 1,000cd/㎡, a 10-bit color depth, high contrast ratio of 1,000 : 1 and wide viewing angle. The LUM-242H supports various standard color gamuts including 90% DCI-P3 coverage. It supports 12G-SDI signal with 4 BNC input connectors (2 for 12G-SDI and 2 for 3G-SDI) and an HDMI 2.0 input.
