TVLogic - LUM-242G
Features :
- 24" True UHD Resolution (3840×2160)
- 98% Coverage of DCI-P3 Color Gamut
- 1.07 Billion Colors (10-bit)
- Peak Luminance of 500 nits
- HDR Emulation (PQ, HLG)
- 12G-SDI Single Link 4K/UHD
- 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
- Waveform and Vectorscope
- 16-channel Audio Level Meter
- Focus Assist and Marker
- Timecode Display
- UMD Display
- Blue/Mono Only
- Various Aspect Ratios
- Luma (Y') Zone Check
- Closed Caption (CC-608, CC-708)
- H/V Delay
- Tally

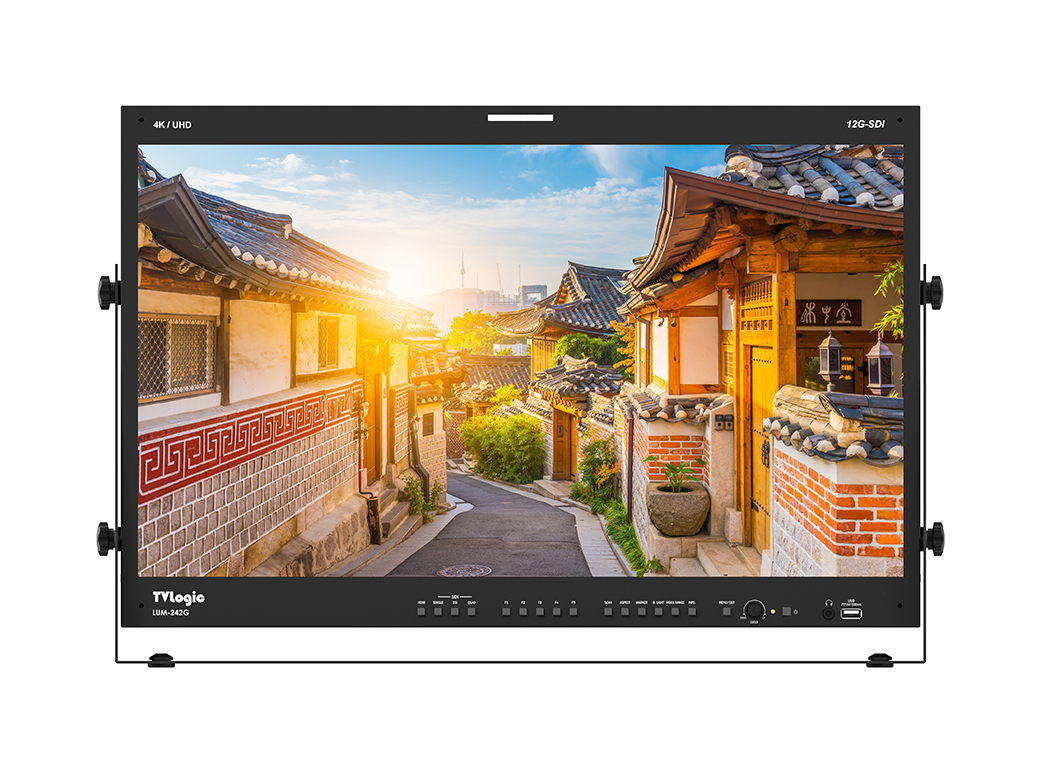

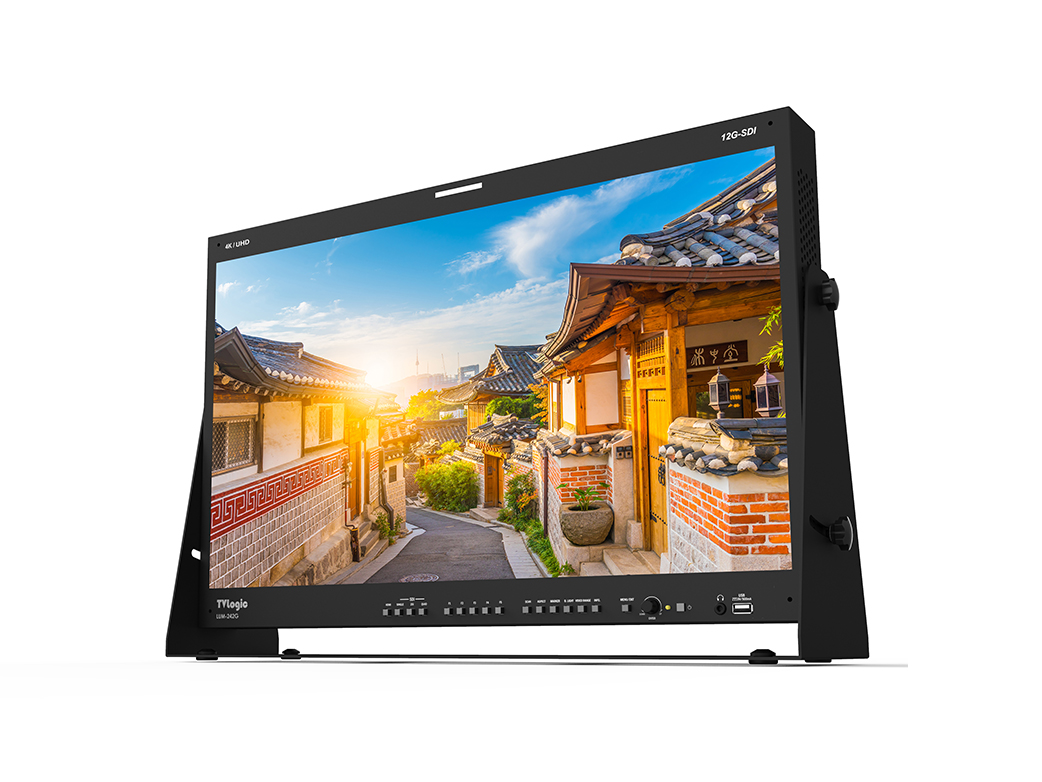

LUM-242G : 24’’ 4K/ UHD HDR Emulation Monitor

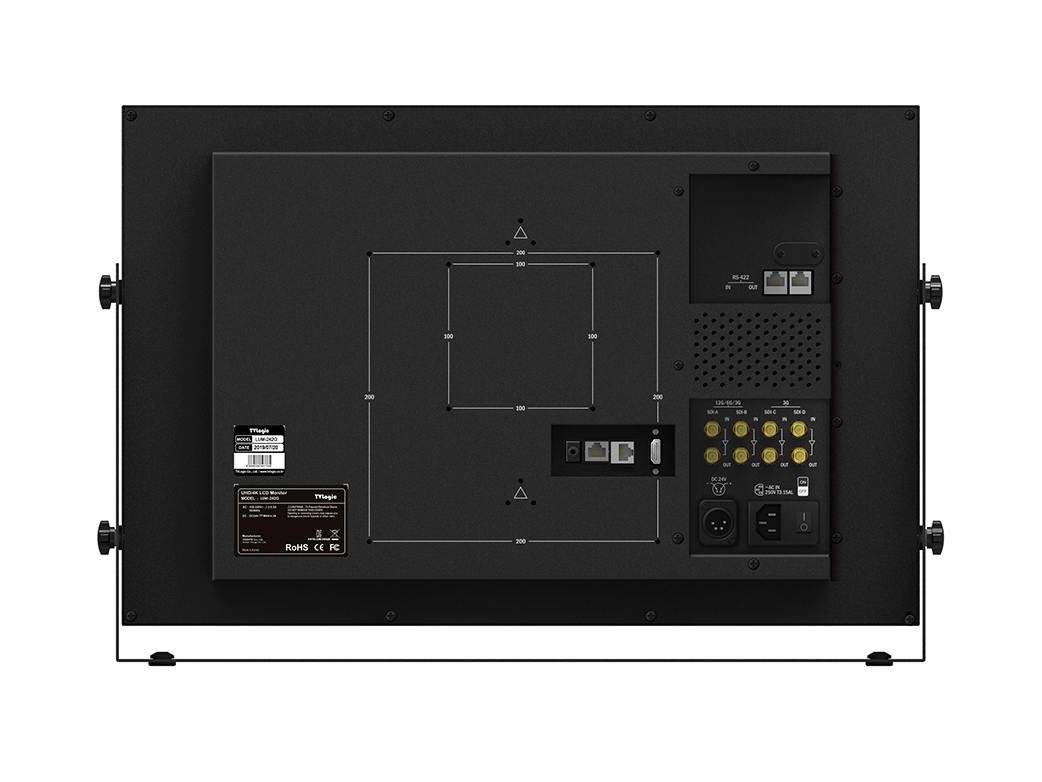

The LUM-242G is a 24 inch UHD resolution (3840 x 2160) monitor with maximum luminance of 500nit, contrast ratio of 1,200:1, wide color gamut and wide viewing angle. Equipped with 4 BNCs (2×12G-SDI + 2×3G-SDI) and HDMI 2.0 interface, it supports various video formats up to 4K/60p through single-link 12G-SDI, Quad 3G-SDI and HDMI 2.0. In addition to various professional features such as Waveform monitor and Vectorscope, the LUM-242G provides HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.
