SKU

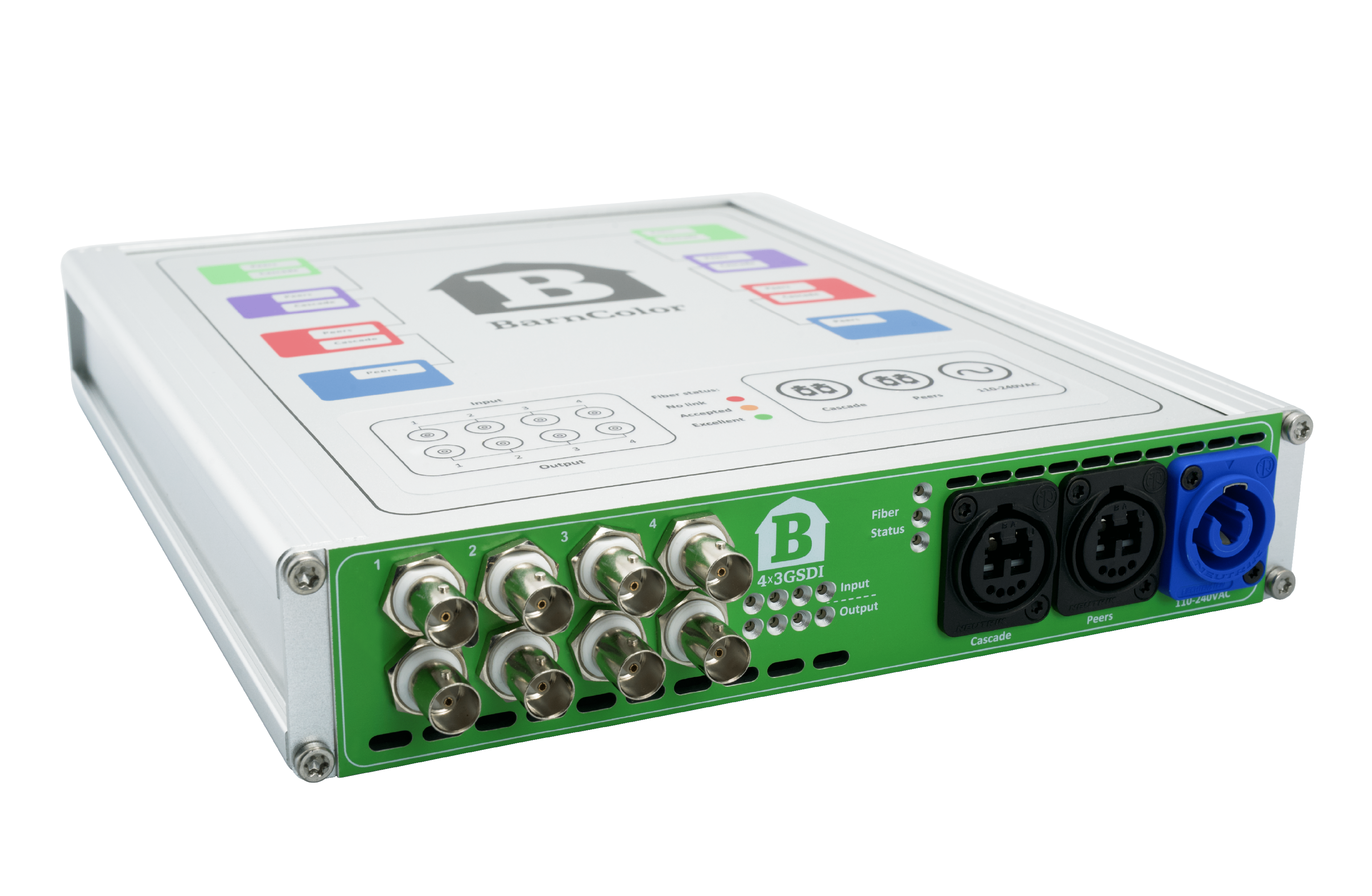

The BarnColor – 4x3G-SDI Green
$2,630
Features :
- BNC-Ports
- SMPTE 259M, 292M, 372M, 424M, DVB-ASI
- Multirate reclocking of outputs 270Mbps – 3Gbps
- Fiber port
- Neutrik opticalCON DUO, also compatible with duplex Single Mode fiber LC-LC
- SMPTE 297M
- Power plug
- Neutrik powerCON
- 100-240VAC, 15Watt
- Physical size 223mm x 277mm x 44mm (8.8” x 10.9” x 1.7”)
- 1.4 kg
Designed to be a cost-effective and easy-to-deploy solution for transmitting multiple video signals both directions on a single fiber cable. BarnColor allows you to handle up to 32 x 3G-SDI signals (16 forward and 16 returns). Each BarnColor device handles up to 8 signals (4 forward and 4 returns) and up to 4 different colors of BarnColors can be daisy chained. This flexible system is easy to install, upgrade and use. It is well suited for both fixed and temporary installations.
