SKU

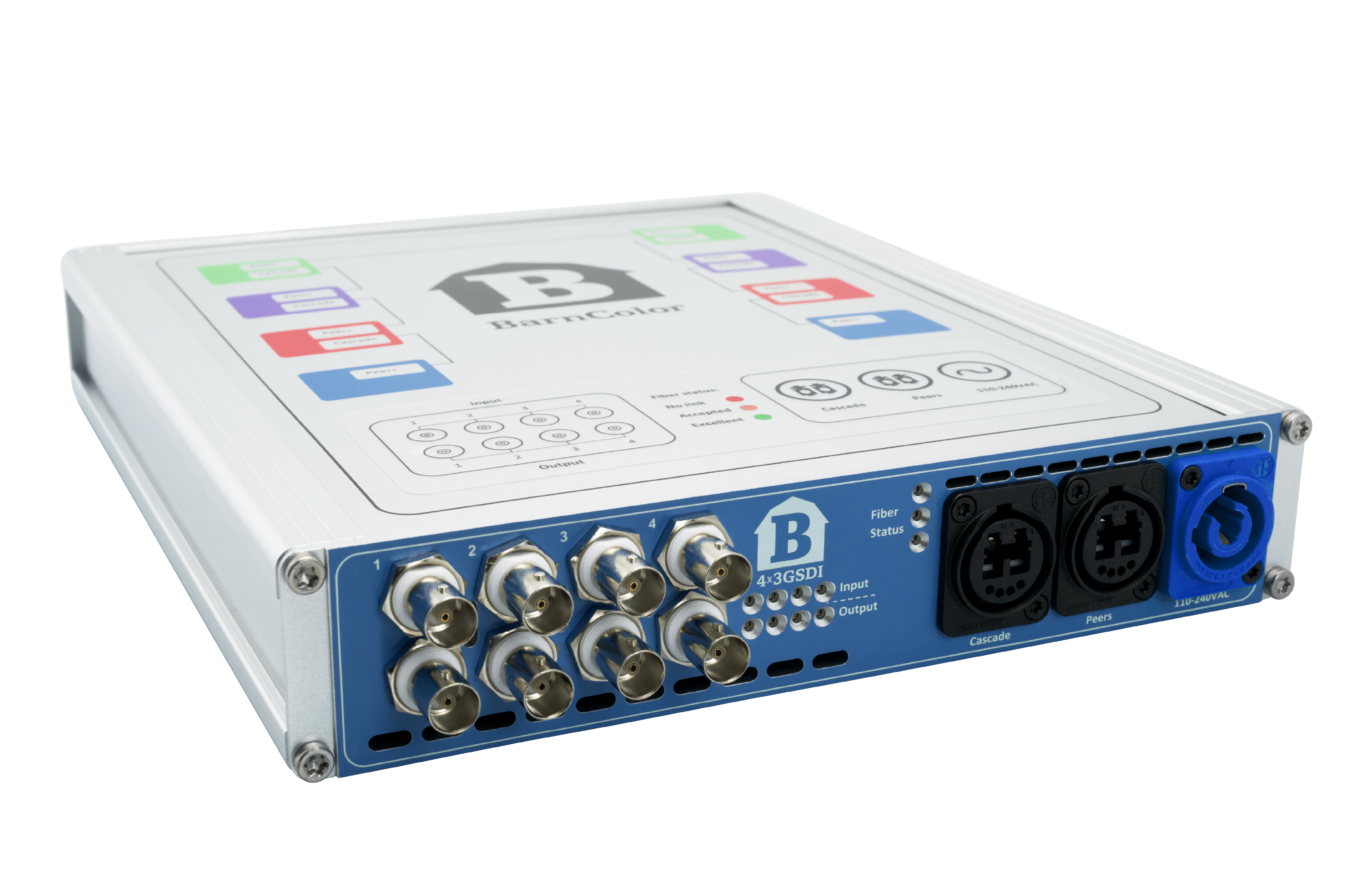

The BarnColor – 4x3G-SDI Blue
$2,630
Features :
- BNC-Ports
- • SMPTE 259M, 292M, 372M, 424M, DVB-ASI
- • Multirate reclocking of outputs 270Mbps – 3Gbps
- Fiber port
- • Neutrik opticalCON DUO, also compatible with duplex Single Mode fiber LC-LC
- • SMPTE 297M
- Power plug
- • Neutrik powerCON
- • 100-240VAC, 15Watt
- Physical size
- • 223mm x 277mm x 44mm (8.8” x 10.9” x 1.7”)
- • 1.4 kg
- Order codes:
- • BarnColor-3G-SDI-B – Blue position
Designed to be a cost-effective and easy-to-deploy solution for transmitting multiple video signals both directions on a single fiber cable. BarnColor allows you to handle up to 32 x 3G-SDI signals (16 forward and 16 returns). Each BarnColor device handles up to 8 signals (4 forward and 4 returns) and up to 4 different colors of BarnColors can be daisy chained. This flexible system is easy to install, upgrade and use. It is well suited for both fixed and temporary installations.
