SKU
Barnfind Technologies AS

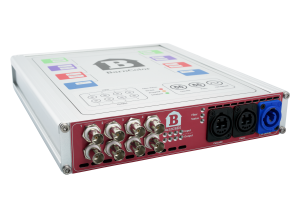

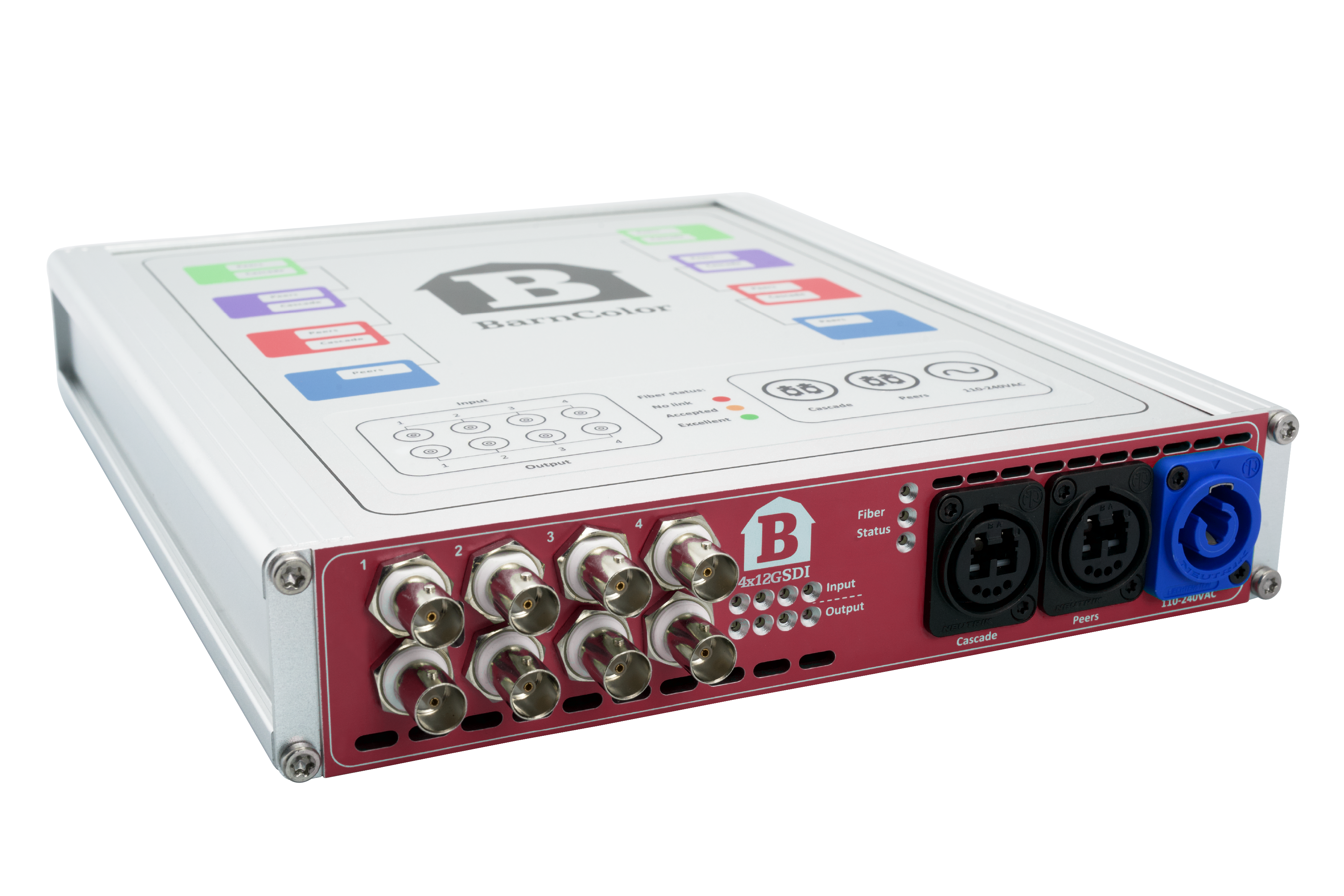

The BarnColor – 4x12G-SDI Red

$5,269
Features :
  • BNC-Ports
  • • SMPTE 258M, 292M, 372M, 424M, DVB-ASI, SMPTE ST-2081, ST-2082
  • • Multirate reclocking of outputs 270Mbps – 12Gbps
  • Fiber port
  • • Neutrik opticalCON DUO, also compatible with duplex Single Mode fiber LC-LC
  • • SMPTE 297M
  • Power plug
  • • Neutrik powerCON
  • • 100-240VAC, 15Watt
  • Physical size
  • • 223mm x 277mm x 44mm (8.8” x 10.9” x 1.7”)
  • • 1.4 kg
  • Order codes:
  • • BarnColor-12G-SDI-R – Red position
Designed to be a cost-effective and easy-to-deploy solution for transmitting multiple video signals both directions on a single fiber cable. BarnColor allows you to handle up to 32 x 3G-SDI signals (16 forward and 16 returns). Each BarnColor device handles up to 8 signals (4 forward and 4 returns) and up to 4 different colors of BarnColors can be daisy chained. This flexible system is easy to install, upgrade and use. It is well suited for both fixed and temporary installations.
