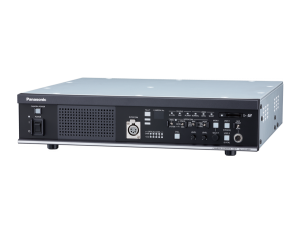

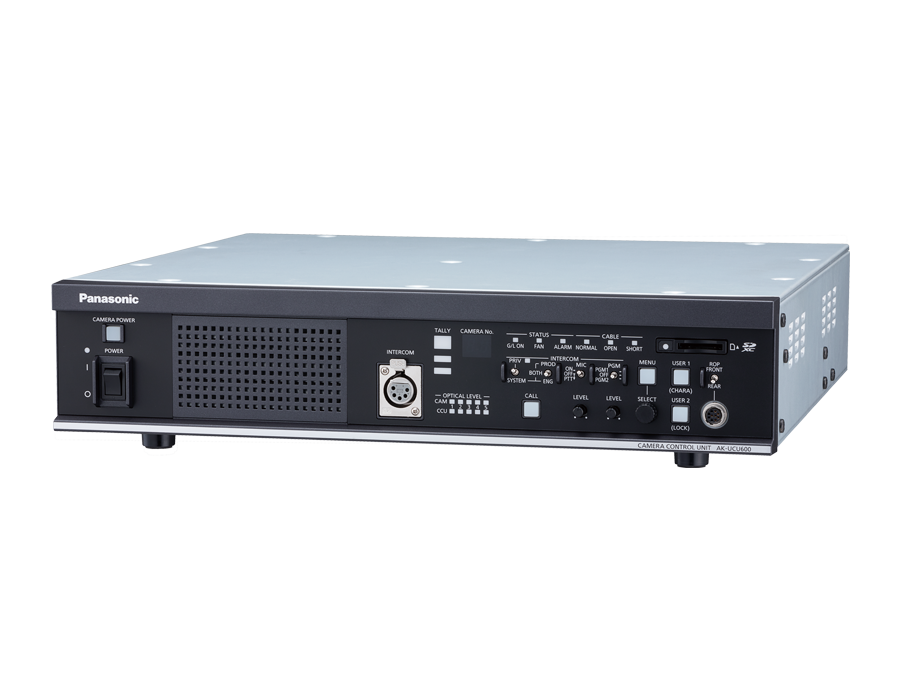

Panasonic - AK-UCU600PJ/EJ AK-UCU600PSJ/ESJ
Features :
- Contains a dual UHD 12G-SDI system, and supports 3G-SDI quad link with quadrant or two-sample interleave.
- Optical fiber transmission of uncompressed video signals over a distance of approx. 2,000 m between camera and CCU*2.
- The compact, lightweight unit measures 2U in height and is rack-mountable.
- Supports IP streaming (100 Base-T).
- SD memory card can be used for saving user files and updating firmware versions.
- Dual uncompressed12G-SDI output.
- Supports TICO*3 over SDI (4K over 3G-SDI) output (4K signal can be transferred by a conventional 3G-SDI cable).
- Supports 1080p/i and 720p. In addition to standard output, high-speed output*1 at 2x, 3x*4 or 4x*4 can be selected according to the specifications of the server.
- Supports HDR/SDR simultaneous output and HDR BT.2020/BT.709 simultaneous output.
- 12G-SDI output and TICO*3 over SDI (4K over 3G-SDI) output are compatible with the AK-UC3000.
- Tajimi Connector Model
AK-UCU600PJ
AK-UCU600EJ- LEMO Connector Model
AK-UCU600PSJ
AK-UCU600ESJ
Supports simultaneous UHD/HD output and high-speed*1 HD shooting.
The CCU supports not only UHD and HD simultaneous output, but also enables high-speed output*1 up to 240p in HD mode to be performed simultaneously with standard (1x) output, while still having a compact size.
